Moment Weighing Scale for Rotor Blades WME 2 - WME 3 - Schenck France

  • Solid Construction
  • Less space required
  • High accuracy
  • Measurement of weight and moment
  • Inexpensive blade adapter
  • Compatible with BLADIS Net

Special features

  • The machine can be mounted directly on the workshop floor without foundations and without bolting, and is immediately ready for use.
  • 50% reduced space required
  • Easy to set up
  • Inexpensive blade adapters
  • Distribution system BLADIS NET with touch screen operation
Conception

Range of application

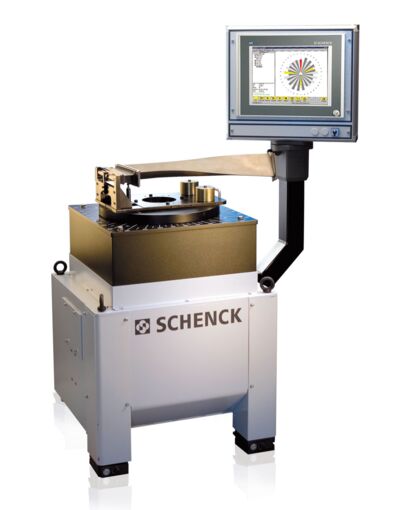

The latest generation of moment weighing scales – the WME series – enables the blades to be even more precisely weighed and distributed on the rotor via the BLADIS Net software. The WME series moment weighing scales precisely determine the mass and the exact centre of gravity. The reduction in unbalance through weighing is ideally suited for all new bladed rotors and also following rotor repair.

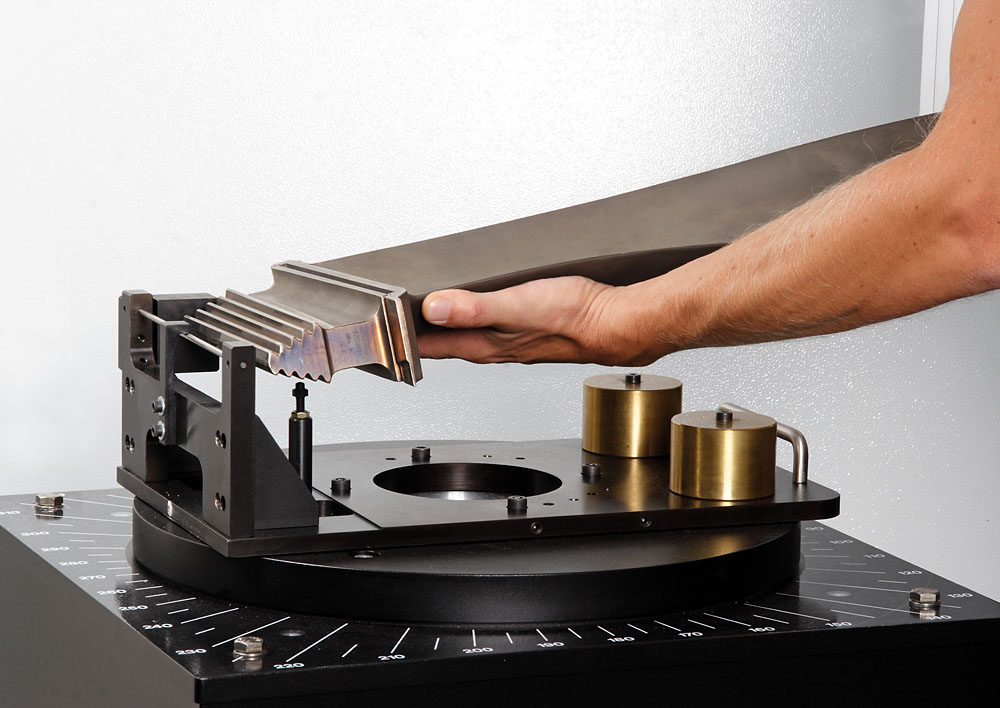

Thanks to the blades being positioned centrally above the measuring device, the space required for the WME series is significantly reduced. The measuring unit is mounted on a beam directly on the scale, which enables a simple, space-saving installation.

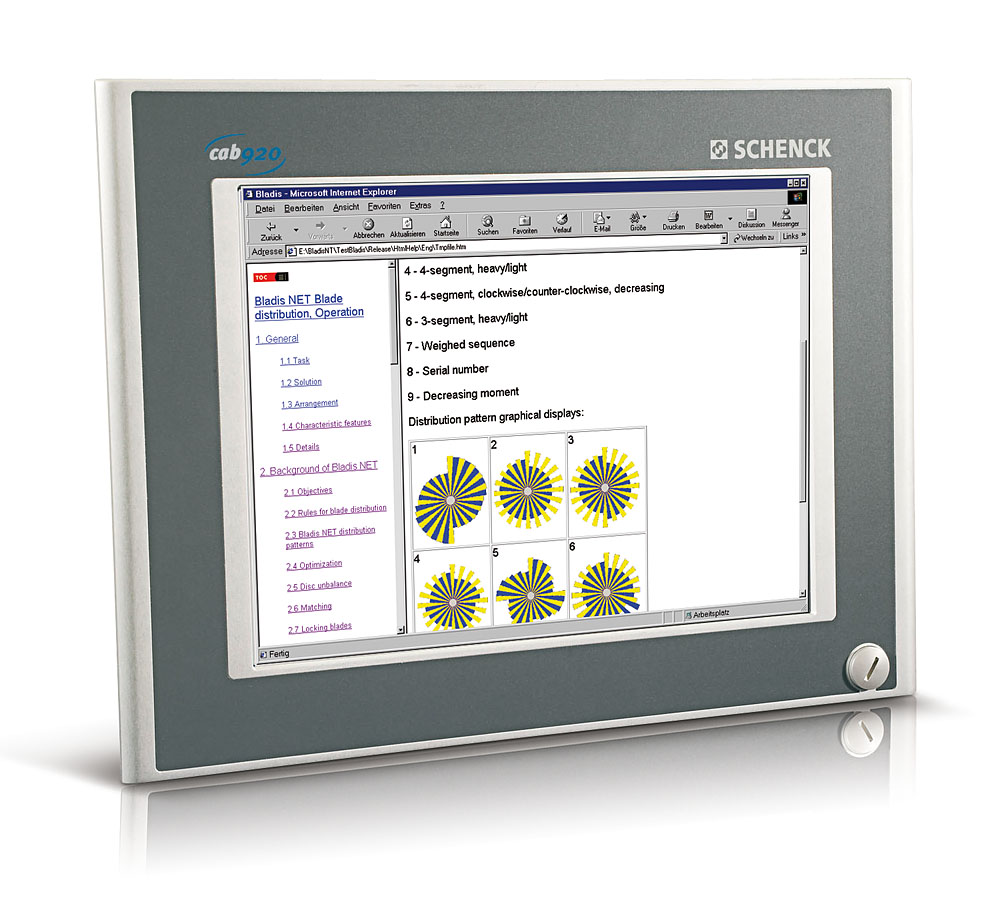

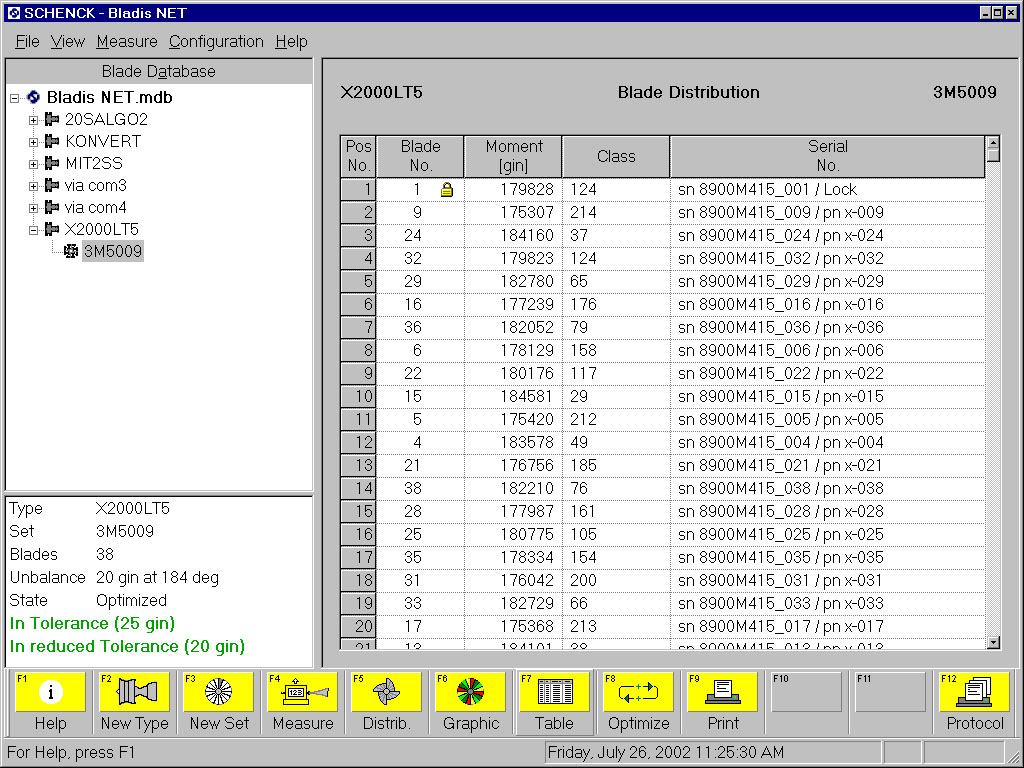

BLADIS Net – the software for blade distribution features a simple and easy to operate user interface with touch screen. The blade distribution is based on continuously improved algorithms that are coordinated with the scale’s enhanced possibilities. The new, integrated database concept also enables rapid calculation of the distribution and transfer of the data to other applications. Numerous additional functions simplify working with BLADIS Net and offer a comfortable and user-friendly operation.
Données techniques
Technical data at a glance
Measuring unit    CAB 759
Color touch screen    •
Combined measuring / correction station    •
Manual loading    •
Automatic cycle    •
Automatic load/unload door    •
Clamp tool actuation unit (push-to-unlock)    •
Horizontal and vertical drilling    •
Spindle drive system    servo
Drill feed    servo
Drill speed    FC
Changeover     manual

Rotor
Weight, max. 2)  [kg]  30
Diameter, max.  [mm]  500
Brake disc height, max.  [mm]  150
Machine
Width A 4)  [mm]  1200
Depth B 4)  [mm]  2700
Height C 4)  [mm]  1800
Balancing speed  [min -1]  600-1000
Measuring uncertainty 1)  [gmm]  4
Air pressure  [kPa]  600
Supply power  [V-Hz]  3x400-50/60
Power consumption  [kVA]  10
Color  RAL7035 (light grey) and  RAL7024 (graphite grey)

Options
Interface for auto load/unload
Vacuum unit

1) Acc. To DIN 1319, 95% probability, work-piece dependent
2) Rotor plus adapter
